B500k Potentiometer

FOB Reference Price:Get Latest Price
$12.00 - $15.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
OMTER
Model Number:
TV18Y20F
Type:
Rotary Potentiometer
Operating Temperature:
+-400ppm/0c
Rated Power:
B:1W A/C:0.5W
Resistance:
B:50 OHM~2M OHM; A/C:1KOHM~2MOHM
Resistance Tolerance:
10%
Max. Operating Voltage:
B:DC400AV A/C:DC200V
Technology:
Carbon Composition
1.:
Same Quality as TOCOS RV24, but nearly half price
2.:
Applicable to All Kinds of Control
3.:
Resistance:
4.:
Rotation life over 3,000,000 turns
5:
Non-standard Features and Specifications Available
6:
Change the output V, Industry: welding machine, etc
7:
Economical Price
8:
Operational Temperature: normal & Low temp
9:
Electrical (Resistance Taper, Total Resistance Value) could choose
10:
Resistance Tolerance <10%
Product Certification certification
RoHS Certified.
Valid from 2019-10-12 until 2049-12-31
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1. 1pc per inner box
2.50pcs per carton
3.100pcs per carton
4. As customer's requirement
Port
Ningbo or shanghai
Lead Time :
10 to 15 days less than 50pcs

B500k Potentiometer




Mechanical parameter:

Total resistanceB:50Ω-2MΩ,A/C:1KOHM~2MOHM
Resistance tolerance±10%
Resistance patternB ,A,C
Max operation voltageAC:DC200V  B: DC400V
Power RateAC:0.25W  B: 0.5W
Power RateAC:0.25W  B: 0.5W
Weight7g
Withstanding voltage1 minute at AC 1000V
Insulation resistancemore than100MΩ(DC500V)
Residual Resistance Value Less than 3%R
 Single Turn
Welding heat resistance235 oc, 5 second
Voltage resistanceAC1000V 1min
Mechanical Rotation Angle300 degree +-5 Degree
Rotation Torque5~30 mN.m

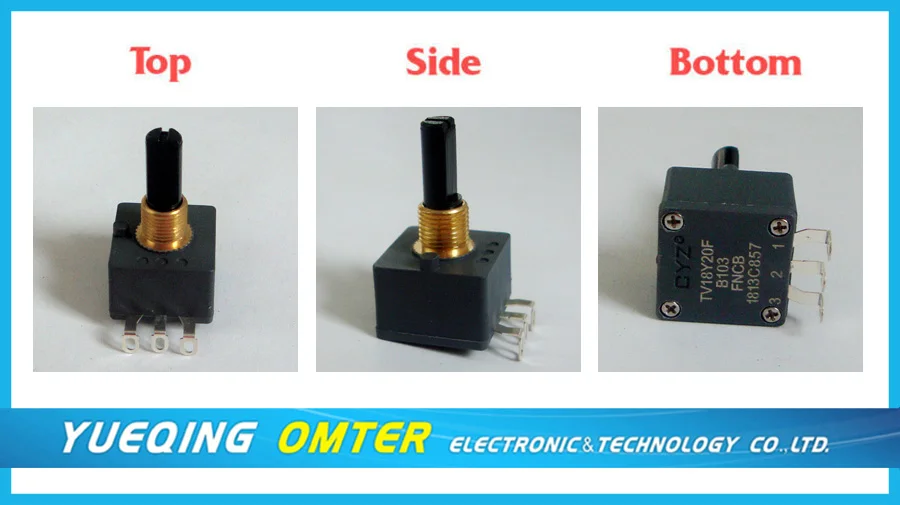

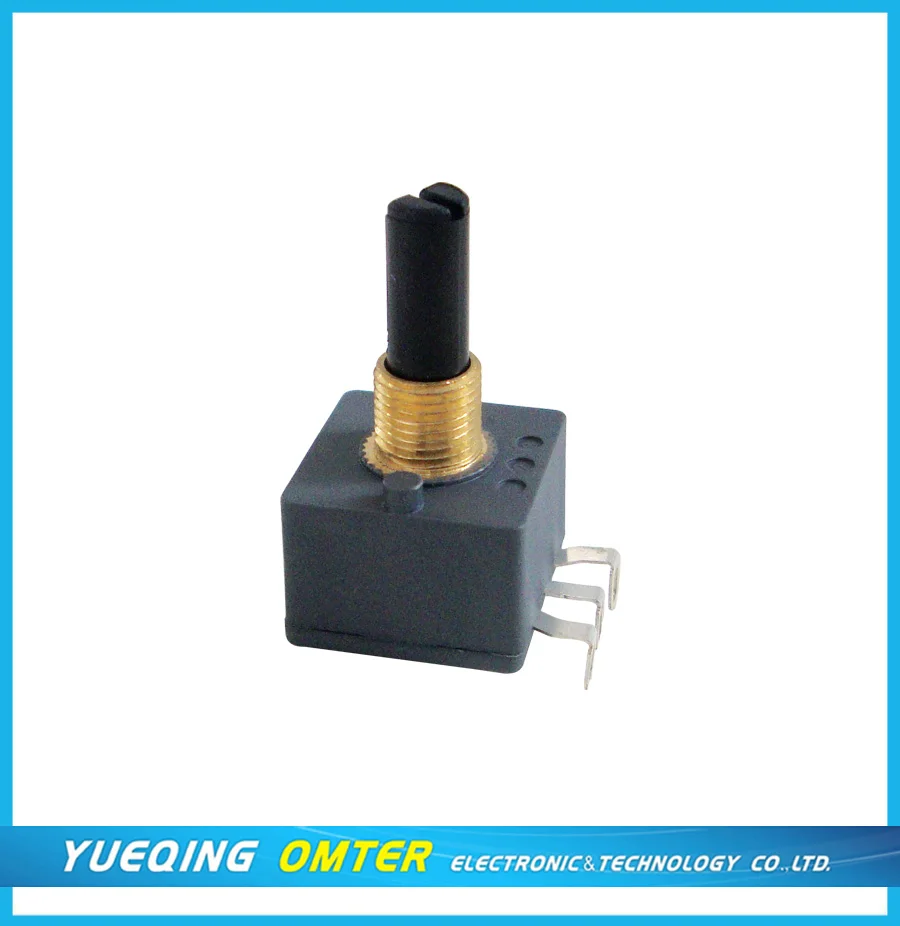

 Detailed picture:

.jpg

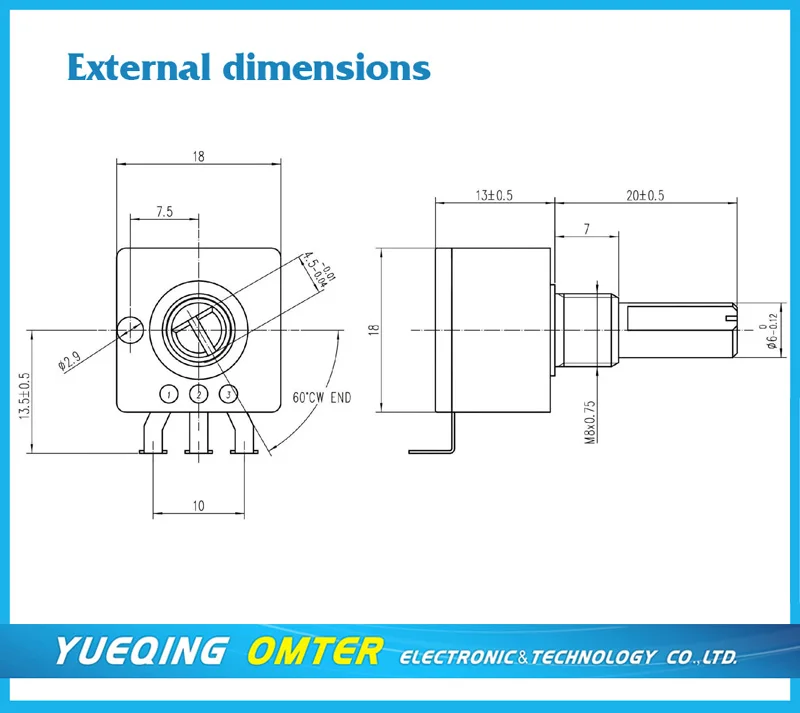

Drawing:








Express delivery:


Sample:

1. Samples time: Need 7-10 days to preparing the samples after receiving the payment.

2. Samples payment term: T/T, PAYPAL, Western union

Quality Guarantee:

1.Strictly quality control  before leave factory

2. Quality guarantee  within one year

Advantage:

1.Low MOQ: 1PC

2.New design Accepted: As your requirement

3.Good Service: Customer as God

4.Good Quality: Strict quality control  and good reputation

5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)

Order Guide:

1. Inquiry-Professional quotation.
2. Confirm the price, lead time, packing requirement, payment term etc.
3. OMTER sales send the Proforma Invoice with OMTER seal.
4. Customer make the payment and send us Bank receipt.
5. Will inform client that we have got the payment, arrange the production & inform the estimated time.
6. After delivery will inform the tracking number and check the status for clients.
7.   Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .








...

....
