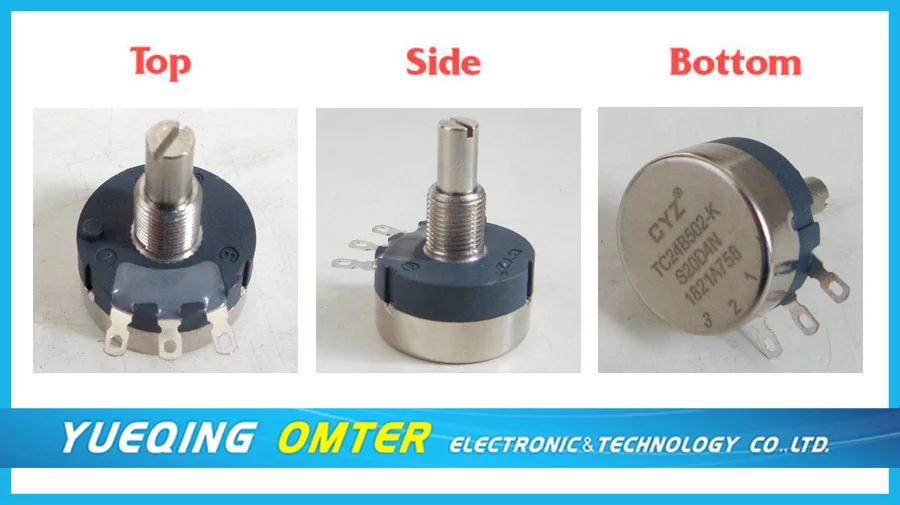

Good Quality 24mm precision linear rotary potentiometer

FOB Reference Price:Get Latest Price
US $0.1-1 / Pieces | 10 Piece/Pieces 10pcs/value (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
OMTER
Model Number:
RV24YN-20S
Type:
Rotary Potentiometer
Technology:
Metal Alloy
Resistance:
B = 50Ω to 2MΩ
Resistance Tolerance:
±10%standard
Rated Power:
B=0.25W; A,C=0.125W at +40°C,0 W at +85°C
Max. Operating Voltage:
B = 315VDC; A.C = 200VDC
Operating Temperature:
-10°C to +85°C
1:
Long life-time
2:
SGS Certificate
3:
Eco-friendly raw material
4:
Simply installment
5:
OMTER Brand
6:
OEM welcomed
7:
For printing equipment
8:
For satellite
9:
For medical equipment
10:
Made in china
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month fast delivery
Packaging & Delivery
Packaging Details
1.one pc/bag
2.20 pcs/box
3.export cartons
4.as customer requirement
Port
ningbo or shanghai
Lead Time :
15-25days after receiving payment


linear rotary potentiometer

Product Description







Standard Resistance RangeB = 50Ω to 2MΩ
A.C = 1kΩ to2MΩ
resistance Tolerance±10%standard
End Resistance3Ω max.
Resistance TaperB = linear; A = CW audio (logarithm);
C = CCW audio (logarithm)
Peak Noise (C.R.V.)3% or 3Ω. whichever is greater
Power RatingB = 0.25 watt; A,C = 0.125 watt
at +40°C. 0 watt at +85°C
Maximum Input VoltageB = 315VDC; A.C = 200VDC
or power rating, whichever is smaller
Insulation Resistance100MΩ minimum at 1.000VDC
Dielectric Strength1,000VAC, 1 minute
Adjustment Travel280°±10°
Mechanical
Mechanical Travel300°±5°
Shaft Torque
Single Unit51 to 306 gf.cm (0.707 to 4.242 oz-in)
Other Units51 to 510 gf.cm (0.707 to 7.070 oz-in)
Stop Strength9.18 kgf.cm (127.26 oz.in) max.
Mounting Nut Torque15 kgf.cm (207.94 oz.in) max.
Solderability235°C 5 seconds
MarkingModel type, taper, resistance code.
shaft type, terminal identification, date code
Environmental
Temperature Range-10°C to +85°C
temperature Characteristics+85°C, 30 minutes
without load
R ≤ 10kΩ →ΔT/R≤±6%
10kΩ ΔT/R ≤±10%
R≥1MΩ→ ΔT/≤±15%
Load Life+40°C. 1,000 hours with rated load
AT/R ≤ ±10%
Moisture and Load Life+40°C.90-95%RH.
500 hours with rated load
R < 100kΩ → ΔT/R ≤-10%- + 15%
R ≥ 100kΩ → ΔT/R ≤-10%-+20%
Thermal Shock-10°C~+85°C.
5 cycles without load
ΔT/R ≤ ±10%
Vibration10-55Hz, 1.5mm amplitude.
3 directions. 2 hours each
ΔT/R ≤ ±2.5%
Soldering Heat Resistance350°C. 3 seconds
ΔT/R≤±2%
Rotational Life15.000 cycles (500 cycles for shaft lock
models only) without load
ΔT/R ≤±7%
Standard Rotary Switches
Switch Rating110VAC, 1A or 3A. SPDT or SPST
Contact Resistance0.05Ω max.
Operating Torque1,530 gf.cm (21.21 oz-in) max.
Operating Life10.000 cycles without load
R. Total Resistance Value; ΔT/R. Total Resistance Change
