OM1A single Hall type joystick for industrial

FOB Reference Price:Get Latest Price
$58.00 - $60.00 / Pieces | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
OMTER
Model Number:
OM1A
1.:
color: black
2.:
function:spring return
3.:
Resistance:4K Ω 5K Ω
4.:
service Life: long life-time
5.:
For industrial remote control
6.:
For construction machinery
7.:
For agricultural machinery
8.:
For transportation machinery
Type:
OM1A single Hall type joystick for industrial
Item no.:
OM1A
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1. 1pc per inner box
2.50pcs per carton
3.100pcs per carton
4. As customer's requirement
Port
Ningbo or shanghai
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 25 To be negotiated

                      OM1A single  Hall type joystick for industrial



Product characteristic:

Spring automatic reset, fingertip type operation.

Single axis front and back direction operation; with direction switch’s potentiometer mode;

could without contact with single or double Hall mode, no direction switch.

Could according to the requirement select the output voltage range.

Application scope:

This series products are mainly used in industrial remote control,
construction machinery, agricultural machinery and transportation machinery.

Product selection:
OM1A - ooo
1.           2.
Sub-item selection instructions:
1.Product series numberOM1A series industry handles, Hall or potentiometer type single axis spring automatic reset,potentiometer type with direction switch, the installment pitch of hole size is 24mm*36mm.
Mainly used in industrial remote control, construction machinery, agricultural machinery and transportation machinery
2.Output signal

P041= potentiometer type, input voltage less than 36Vdc, with 4K Ω center-tapped potentiometer,0% ~ 100%Vdc voltage output

P052= potentiometer type, input voltage less than 36Vdc, with 5K Ω center-tapped potentiometer,
10%
~
90%Vdc voltage output

P053= potentiometer type, input voltage less than 36Vdc, with 5K Ω center-tapped potentiometer,
25%
~ 75%Vdc voltage output

H51= Single hall type, the input voltage 10% ~ 5Vdc, 50% ~ 90%Vdc voltage output

H52= Single hall type, the input voltage 0% ~ 5Vdc, 50% ~ 100%Vdc voltage output   H53= Single hall type, the input voltage 25% ~ 5Vdc, 50% ~ 75%Vdc voltage output

2H51= Double hall type, the input voltage 10% ~ 5Vdc, 50% ~ 90%Vdc voltage output

2H52= Double hall type, the input voltage 0% ~ 5Vdc, 50% ~ 100%Vdc voltage output

2H53= Double hall type, the input voltage 25% ~ 5Vdc, 50% ~ 75%Vdc voltage output



Technical parameter:

Mechanical parameter:
Swing angle:± 30°
Service life:Is bigger than 5,000,000 times (potentiometer type),
Is bigger than 10,000,000 times (Hall type)
Operation strength:3.5N (biggest)
Limit strength:50N
Weight:45g
Electrical parameter:
Potentiometer type:
Power supply voltage:< 36Vdc
Total resistance value:4K Ω 5K Ω;
Electrical angle:± 28 °
The median position voltage (relative power supply voltage):48% ~ 52%
The median position dead zone angle:± 2.5 °
Potentiometer loading maximum voltage:DC32V
Potentiometer allows the maximum power consumption (25):0.25W
Direction switch:
load capacity: 10mA 30Vdc (resistive load)
Outset angle:± 3 ° ± 5 °
Hall type:
Power supply voltage:5Vdc
The total current:<10mA
Linear tolerance:± 3%
Power supply voltage:DC5.0V ± 10%
Load resistance:>10K Ω
Environmental parameter:
Operating temperature:-20 °C ~ +70 °C
Storage temperature:-40 °C ~ +85 °C

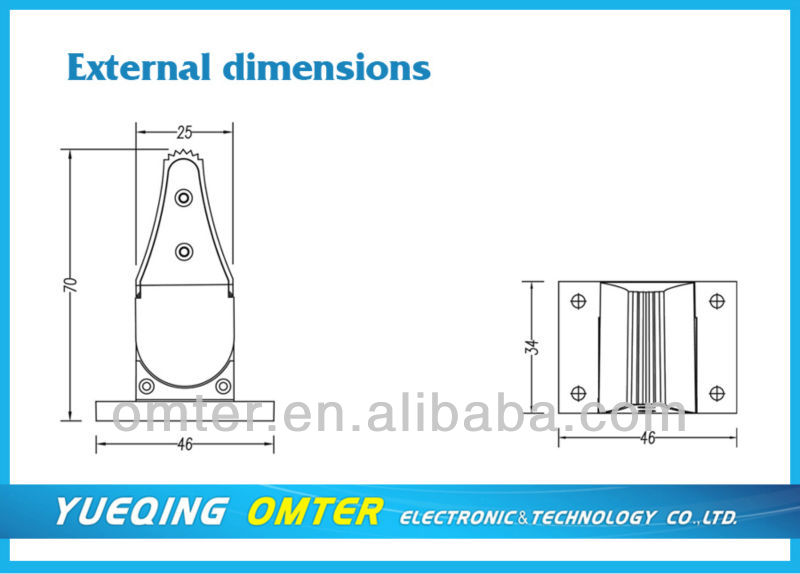

1-axis industrial joysticks Drawing:

Sample:

1. Samples time: Need 7-10 days to preparing the samples after receiving the payment.

2. Samples payment term: T/T, PAYPAL, Western union



Quality Guarantee:

1.Strictly quality control  before leave factory

2. Quality guarantee  within one year



Advantage:

1.Low MOQ: 1PC

2.New design Accepted: As your requirement

3.Good Service: Customer as God

4.Good Quality: Strict quality control  and good reputation

5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)



Order Guide:

1. Inquiry-Professional quotation.
2. Confirm the price, lead time, packing requirement, payment term etc.
3. OMTER sales send the Proforma Invoice with OMTER seal.
4. Customer make the payment and send us Bank receipt.
5. Will inform client that we have got the payment, arrange the production & inform the estimated time.
6. After delivery will inform the tracking number and check the status for clients.
7.   Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .
